Hydraulic Curing Press for passenger car (PCR)

Modular
Customized
Reliable

Product information

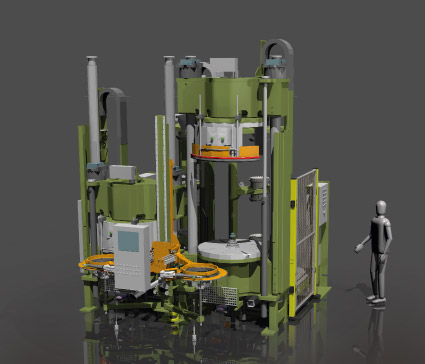

HF, always driven to bring innovative concepts to the market, brought the first hydraulic column type curing press to the tire industry in 1997. Since then we continued to develop this product to meet the demanding requirements of our customers.

While we design presses for your further expansion needs, we also understand the importance of utilizing your existing infrastructure in your plants all around the world.

Due to our compact design we are able to provide slim solutions for your replacement purposes.

HF presses can be built modularly to include the required center mechanism SMO, loader and unloader chuck, green tire stands, cooling conveyors with or without PCI and associated safety items.

Features

• Main locking and squeeze components outside of the heated area
• Achieves optimal tire concentricity
• Press availability at benchmark level
• Straight and angle type press designs available
• Reduced wear, longer press life, improved cycle time and uniformity
• Easier to maintain due to improved access to the important areas of the press
• Proven energy saving systems
• Built according to the latest safety, environmental and manufacturing requirements

Main Technical Parameters

Item Cavity control Max. closing force	Unit kN (t-force)	46'' Curing Press common/independent 1.600 (180)	48'' Curing Presscommon/independent 1.600/1.800/2.000 (180/200/225)	52'' Curing Presscommon/independent 1.800/2.000 (200/225)
Tire Parameters
Min./max. Bead diameter	inch	12-20/14-25	12-20/14-25	14-25
Max. Green tire outer diameter	mm (inch)	850 (33,5)	920 (36,2)	1.000 (39,4)
Max. Cured tire outer diameter	mm (inch)	850 (33,5)	920 (36,2)	1.000 (39,4)
Max. Cured tire height	mm (inch)	406 (16)	450 (18)	450 (18)
Mold Container
Type of mold		2-piece/segmented	2-piece/segmented	2-piece/segmented
Max. outer diameter	mm (inch)	1.168 (46)	1.219 (48)	1.321 (52)
Min./max. mold height	mm (inch)	508 (10-20)	250-610 (10-24)	250-610 (10-24)
Heating Platen
Outer diameter	mm (inch)	1.168 (46)	1.219 (48)	1.321 (52)
Center Mechanism		bag-in-well/standing post (pit or pitless design)	bag-in-well/standing post (pit or pitless design)	bag-in-well/standing post (pit or pitless design)
Green Tire Stand		hanging/shoulder type (single or multiple)	hanging/shoulder type (single or multiple)	hanging/shoulder type (single or multiple)
Pneumatics Hydraulic System from 1:1 to 1:6 (or more)
Heating System piping and manifold concept available various media available (steam/N2, steam/steam, hot water, etc.)		customized to meet your requirements
PLC Systems/Automation		main suppliers available
Safety		according to local safety standards
