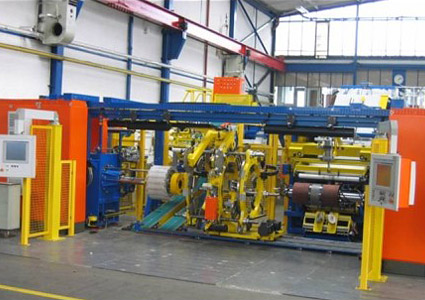

PLT2 / 14in – 24in

(Passenger Light Truck – 2 drums)

Upgradable quality TBM for optimal tire uniformity quality and higher output performance

PLT2

Max. Green tire diameter (working range) < 850mm (optional 1000 mm)
Carcass Drum: 2 bladder type/KS2 incl. pushing device
Carcass Drum: bladderless type/SMT (SemetricalMechanicalTurnup)
Shifting tire building ring
Body Ply (BP) width 280- 870 mm
Pre Assembly (PA) width 380- 1000 mm
Belt width 90 -300 mm
JLB width (tension control) 10 -25 mm
Tread width 120 - 320 mm
Tread length / for precut (optional for Reel Tread) max. 2800 mm
Ply Server > SW/IL, separate launch or SW / JL PAC pre-assembled inside server, doubling
Production output, up to 1500 tire per day *

* depending on customer's semi-material, skills of the operator and tire design
