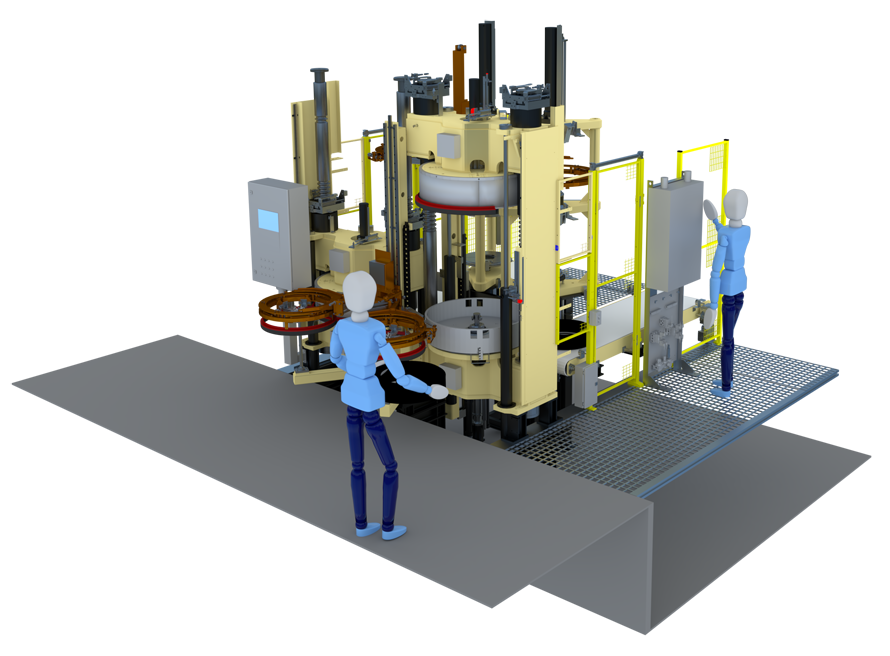

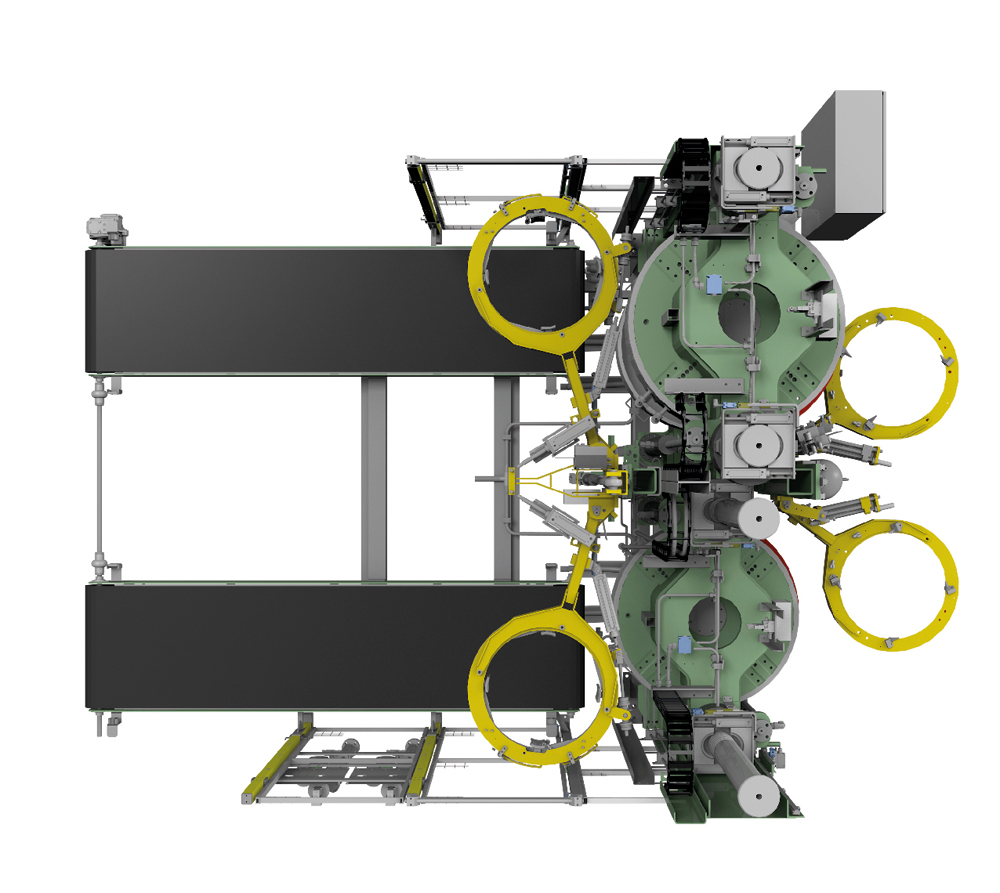

Hydraulic Curing Press for 2-wheeler, scooter, mopeds, 3-wheeler tires

Hydraulic Curing Press for 2-wheeler, scooter, mopeds, 3-wheeler tires

Efficient
Compact
High Quality

Product information

In order to cover the rapid growing demands of the 2-wheeler and scooter markets, HF adapted its proven column design for this press type to produce standard to high-end performance tires.

Hydraulic Curing Press for 2-wheeler, scooter, mopeds, 3-wheeler tires

Features

  • Designed to handle bias and radial tires
  • Main locking and squeeze components
  • outside of the heated area
  • Achieves optimal tire concentricity
  • Press availability at benchmark level
  • Reduced wear, longer press life, improved
  • cycle time and uniformity
  • Easier to maintain due to improved access
  • to the important areas of the press
  • Proven energy saving systems
  • Built according to the latest safety, environmental,
  • and manufacturing requirements

Main Technical Parameters

Item
Cavity control
Max. closing force
Unit
kN
(t-force)
36'' Curing Press common/independent
800
Max. closing force (t-force) (90)
Tire Parameters
Bead diameter inch 10-21
Green tire outer diameter mm (inch) 610 (24)
Cured tire outer diameter mm (inch) 720
Cured tire height mm (inch) 250
Mold Container
Type of mold   2-piece/segmented
Max. outer diameter mm (inch) 889 (35)
Min./max. mold height mm (inch) 100-300 (3,9-11,8)
Heating Platen
Outer diameter mm (inch) 889 (35)
Center Mechanism   standing post (pit or pitless design)
Green Tire Stand
(single or multiple)
  hanging/shoulder type
Pneumatics
Hydraulic System
from 1:1 to 1:6 (or more)

Heating System
piping and manifold concept available
various media available (steam/N2, steam/steam, hot water, etc.)
  customized to meet your requirements
PLC Systems/Automation   main suppliers available
Safety   according to local safety standards
